When planning for CCNP Enterprise certification, you will be required to answer the core exam 350-401 ENCOR and one of concentration exams as follows:

300-410 ENARSI Implementing Cisco Enterprise Advanced Routing and Services (ENARSI)
300-415 ENSDWI Implementing Cisco SD-WAN Solutions (ENSDWI)
300-420 ENSLD Designing Cisco Enterprise Networks (ENSLD)
300-425 ENWLSD Designing Cisco Enterprise Wireless Networks (ENWLSD)
300-430 ENWLSI Implementing Cisco Enterprise Wireless Networks (ENWLSI)
300-435 ENAUTO Implementing Automation for Cisco Enterprise Solutions (ENAUI)

300-425 ENWLSD exam is one of the CCNP Enterprise concertration exams, which mainly tests your knowledge of wireless network design. Based on the exam knowledge points, Cisco 300-425 ENWLSD practice exam are released, which contain reliable 300-425 exam questions and answers for CCNP Enterprise certification.

Read Below, you can check Cisco CCNP Enterprise 300-425 ENWLSD Free Questions.

Page 1 of 3

1. An engineer is designing a wireless deployment for a university auditorium .

Which two features can be used to help deal with the issues introduced by high AP count? (Choose two.)

TSPEC

RXSOP

TPC

LSS

DFS

2. An engineer must perform a pre-deployment site survey for a new building in a high-security area. The design must provide a primary signal RSSI of -65 dBm for the clients .

Which two requirements complete This design? (Choose two)

Site access

AP model

WLC model

HAVC access

Number of clients

3. A wireless engineer is utilizing the voice readiness tool in Cisco Prime for a customer that wants to deploy Cisco IP phones .

Which dBm range is the network inspected against?

-78 to -65 dBm

-72 to -67 dBm

-85 to -65 dBm

-85 to -67 dBm

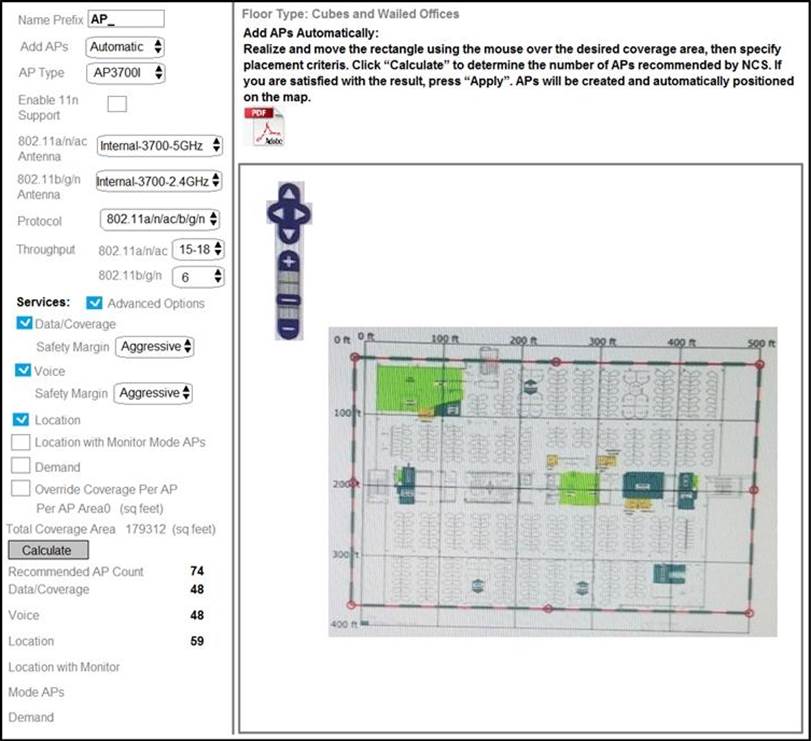

4. Refer to the exhibit.

Which two statements about Cisco Prime Infrastructure are true? (Choose two.)

It presents the recommended number of APs for the selected coverage area based on the selections made.

Planning mode requires a special license in Cisco Prime Infrastructure.

It shows the map editor feature in Cisco Prime Infrastructure.

Controllers must be synchronized with Cisco Prime Infrastructure for planning mode to work.

It shows the planning mode feature in Cisco Prime Infrastructure.

5. An engineer performs a Layer 1 survey by using Metegeek chanalyzer only on the current operating channel .

Which operating mode is configured for a Cisco Clean AIR AP?

Local

Sniffer

Monitor

SE-connect

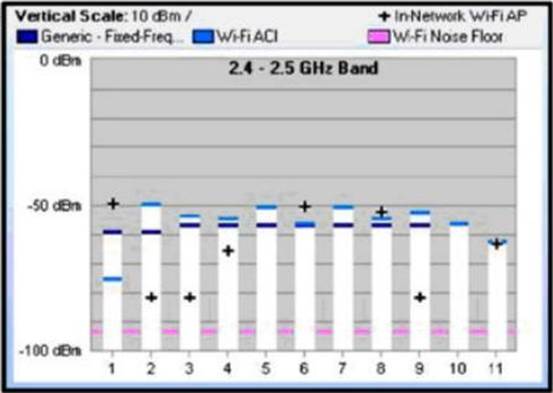

6. An engineer as performing a Layer 1 passive wireless site survey utilizing a channel analyzer software in the 2.4 GHz spectrum .

Which chart indicates the ratio of interference present during the duration of the capture?

A)

Option A

Option B

Option C

Option D

7. A company has 10 access point licenses available on their backup Cisco WLC and their primary Cisco WLC is at full capacity, 5 access points are set to high failover priority and 7 access points are set to critical failover priority. During a failure, not all critical access points failed over to the backup Cisco WLC .

Which configuration is the cause of this issue?

The high priority access point is oversubscribed.

network ap-priority is set to enable.

The critical priority access point count is oversubscribed.

network ap-priority is set to disable.

8. The wireless team must configure a new voice SSID for optimized roaming across multiple WLCs with Cisco 8821 phones .

Which two settings accomplish this goal? (Choose two.)

Configure mobility groups between WLCs.

Use Cisco Centralized Key Management for authentication.

Configure AP groups between WLCs.

Configure AVC profile on new SSI

Use AVC to tag traffic voice traffic as best effort.

9. A network engineer is designing a new wireless network.

The network needs to have these characteristics:

Which approach should be taken?

Deploy APs near each other for 5 GHz coverage, and disable the 2A GHz radios for some Aps.

Deploy APs near each other for 2.4 GHz coverage, and disable the 5 GHz radios for all APs.

Deploy APs near each other for 5 GHz coverage, and enable the 2.4 GHz radios for all Aps.

Deploy APs near each other for 2.4 GHz coverage, and disable the 5 GHz radios for some APs.

10. An engineer must create data-link redundancy for the company’s Cisco Wireless LAN Controller. The engineer has decided to configure LAG-based redundancy instead of port-based redundancy .

Which three features of LAG-based redundancy influenced this decision? (Choose three.)

Packets are always sent out on the same port they are received on.

All interface traffic passes as long as one port is up.

The same port has multiple untagged dynamics interfaces.

Interface connection to two separate nonstacked switches is available.

Full bandwidth of all links is available.

Ports are grouped into multiple LAGs.

Page 2 of 3

11. Why is 802.11a connectivity reduced in an X-ray room?

X-rays create significant non-Wi-Fi interference on the 802.11a band.

X-rays impact the 802,11a UNll-2 channels that cause access points to dynamically change channels.

X -rays within these rooms cause multipath issues.

X-ray rooms exhibit increased signal attenuation.

12. Which statement about creating a mobility group is true, excluding mobility anchors?

Each WLC must use the same mobility name and be defined as a peer in each other’s static mobility members list.

If WLCs with HA SSO are deployed, each WLC in the WLC HA pair considered separately as a mobility peer.

The WLCs do not have to be of the same model or type to be a member of a mobility group, however each member should be running different software versions.

A mobility groups does not require all WLCs in the group to use the same virtual IP address.

13. A network engineer is preparing for an office site survey with a height of 2.5 meters .

Which three components are recommended to complete the survey? (Choose three.)

Use a battery pack to power APs

Use a drawing of the office space to draw AP and client placements.

Use DoS attack on APs while measuring the throughput.

Use APs with directional antennas.

Use APs with external antennas.

Use APs with built-in antennas.

14. Which three pieces of equipment are needed to conduct a fully measured wireless survey? (Choose three.)

PoE battery

spirit level

access point

tall tripod

goggles

ladder

15. Two cisco 5520 wireless LAN controllers are managing all access points throughout the network. The WLCs are in different locations to provide geographical redundancy a mobility group has been configured on both WLCs and has a UP status on both controllers. The Aps in location A are statically configured to use controller A as the primary and controller B as the secondary. If the WLC in location A goes offline. The Aps successfully join the WLC in location, but they do not fail over to their primary configured controller .

Which configuration task fixes the issue?

Configure the WLC in location A as primary using the CAPWAP AP Controller IP Address command on all the location A Access points.

Use DHCP Option 43 and specify WLC in location A as primary.

Enable AP fallback globally on the WLC

Change the AP Failover Priority to critical.

16. A network engineer needs to create a wireless design wired IP surveillance cameras in the parking lot through a mesh AP.

To which operate mode of the AP should the cameras connect?

Flexconnect

MAP

RAP

Local

17. An engineer has configured guest anchoring for a newly created SSD however, the mobility tunnels are not up, and EPING is failing from the foreign WLC to the anchor WLC .

Which traffic flow must be allowed at the firewall to enable the communication?

UDP port 16666

IP protocol 97

UDP port 97

TCP port 97

18. An engineer has performed a predictive site survey for high-speed data and voice in an indoor office .

What is the recommended data rate with -67 dBm signal level for optimal VoWLAN design?

6 Mbps on 802.11 bgn

24 Mbps on 802.11 bgn

12 Mbps on 802.11 an

24 Mbps on 802.11 an

19. A university is in the process of designing a wireless network in an auditorium that seats 500 students and supports student laptops .

Which design methodology should the university implement in the auditorium?

roaming design model

voice design model

location design model

high-density design model

20. A customer is running a guest WLAN with a foreign/export-anchor setup. There is one anchor WLC in the US and two in Europe. Anchor WLC priorities are used to prefer local anchors. During a routine network audit, it is discovered that a large number of guest client sessions in the US are anchored to the WLCs in Europe .

Which reason explains this behavior?

The foreign WLC failed and recovered.

The US anchor WLC failed and recovered.

The US anchor WLC is anchored to itself with a priority value of zero.

The anchor WLC is in the same mobility group.

Page 3 of 3

21. A wireless network consultant must assess an existing wireless LAN controller .

Which section must the consultant check before replacing the old APs with APs that are IEEE 802.11ac-capable?

number of AP licenses

controller PSU

throughput capacity

software version

22. An engineer Is trying to determine the most cost-effective way to deploy high availability for a campus enterprise wireless network that currently leverages three wireless LAN controllers .

Which architecture should the engineer deploy?

N+1 solution without SS0

N+1 with SSO

N+N solution without SSO

N+N with SSO

23. An engineer must configure the virtual IP address on multiple controllers in a mobility group .

Which rule must the engineer follows to ensure proper roaming?

Ensure that the DNS entry is tied to the virtual IP address of the WL

Use a unique IP address for each WL

Ensure that the DNS Host Name field is defined.

Use the same IP address for each WL

24. A high-density wireless network is designed .

Which Cisco WLC configuration setting must be incorporated in the design to encourage clients to use the 5 GHz spectrum?

RRM

Cisco centralized key management

Band select

Load balancing

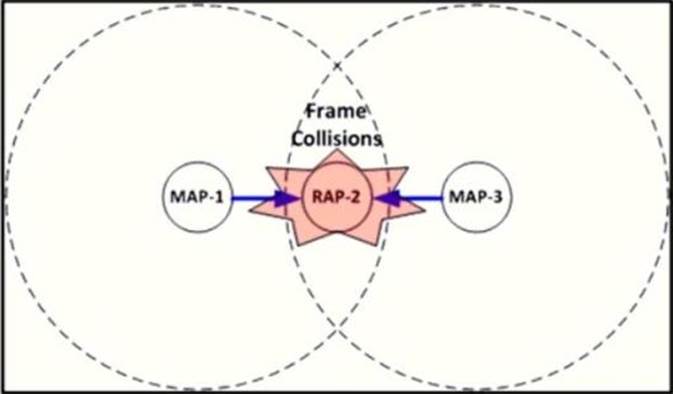

25. Refer to the exhibit.

During a post Mesh deployment survey, an engineer notices that frame collisions occur when MAP-1 and MAP-3 talk to RAP-2.

Which type of issue does the engineer need to address in the design?

co-channel interference

backhaul latency

hidden node

exposed node

26. A wireless engineer is performing a post verification of a wireless network .

Which two metrics does the engineer verify to ensure that the wireless network can support voice services? (Choose two.)

The coverage area must have a noise floor that does not exceed -87 dBm.

The client device must have at least an -67 dBm RSS

The rate of retransmitted packets must be 15 percent or below.

The rate of retransmitted packets must be 20 percent or below.

The client device must have at least an -65 dBm RSS

27. A technician connects a Cisco Aironet 3700 Series access point to a switch and realizes that the AP is coming up with 3x3 MIMO .

Which reason explains this behavior?

A redundant power supply is unavailable on the switch.

The switch is 802.3af capable.

The AP is getting power from a power injector.

The switch is PoE+ capable.
