Choosing the best 300-610 practice exam is the great and effective way to pass CCNP Data Center 300-610 Designing Cisco Data Center Infrastructure (DCID) certification exam. The practice exam for 300-610 CCNP Data Center DCID exam contain the real and actual Q&As, that’s why Cisco 300-610 practice exam is considered as the best online resource to help candidates prove they have the skills in data center infrastructure design and they can pass Designing Cisco Data Center Infrastructure (DCID) exam successfully. The coverage of Cisco 300-610 Practice exam questions is high for passing 300-610 DCID exam, come to ITExamShop to choose the best practice exam to prepare for Designing Cisco Data Center Infrastructure (DCID) exam well.

Choose To Read Free DEMO Questions To Check The 300-610 Practice Exam

Page 1 of 4

1. An engineer must connect an existing Cisco Fabric Interconnect to an IP-based storage array. The connection be a channel made directly between the fabric interconnect expansion module and the storage array. The engineer must also consider that the environment is running FCoE for storage and uses QoS to prioritize traffic .

Which port type should be used to meet these requirements?

Network

Uplink

Appliance

server

2. A network architect must design a large-scale Cisco SAN topology. The customer has a limited budget, so a design that provides use of resources is required. To support this requirement, the architect to share array ports, ISL, and line card bandwidth.

The customer has also presented these additional considerations:

✑ The customers plans to expand the network by 10% over the next two years.

✑ The customer’s policy requires physically separated infrastructure to support high availability.

Which solution should be used to meet these requirements?

Collapsed-core

Mesh

Core-edge

Edge-core-edge

3. What are two reasons to select OTV as the DCI solution to connect multisite topologies? (Choose two.)

It propagates hosts reachability without support of traffic flooding.

Layer 3 failures do not propagate beyond the OTV edge device.

It extends the spanning tree between data centers.

It is an open standard.

It constrains HSRP hello messages to each data center.

4. An engineer Installs a B-Series server in a Cisco UCS chassis that contains a pair of UCS-IOM-2208XP I/O modules. The full bandwidth of the I/O module must be utilized .

Which two elements should be used in this environment? (Choose two.)

eight twinax cables from each I/O module to each fabric interconnect

four twinax cables from each I/O module to each fabric Interconnect

Cisco UCS VIC 1225

Cisco UCS M81KR

Cisco UCS VIC 1280

5. Which Ethernet to Cisco Fabric Interconnect connectivity configuration is supported when FCoE is implemented?

VSS that has unified uplinks

Ethernet and unified ports on the same port channel

vPC that has unified uplinks

cross-connections with pinning

6. Which two naming formats identify target or initiator iSCSI nodes? (Choose two.)

WWPN

EUI

IQN

WWN

OUI

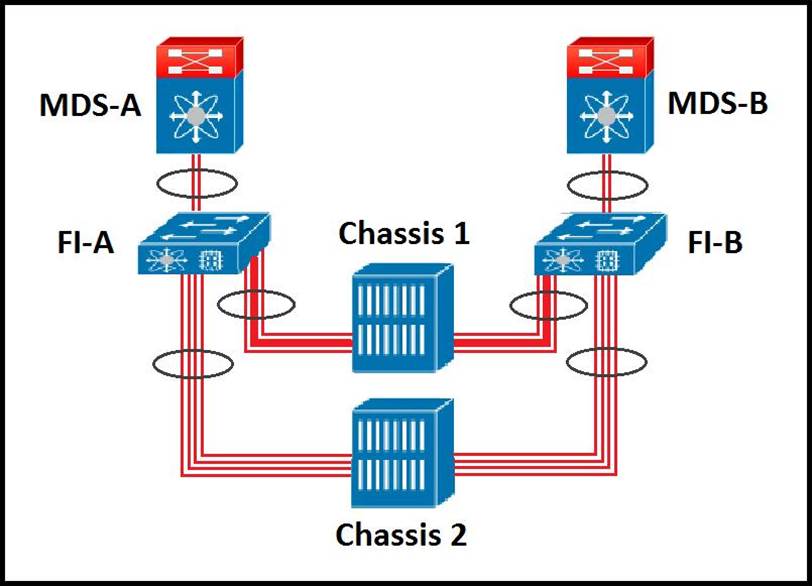

7. Refer to the exhibit.

An engineer must assign multiple Fibre Channel IDs to a single port channel .

Which two features must be enabled this goal? (Choose two)

SAN Pin Groups on the Cisco UCS Fabric Interconnects.

NPV feature on the Cisco MDS Series.

end-host mode feature on the Cisco UCS Fabric Interconnects

NPIV feature on the Cisco MDS Series

Smart Zoning feature on the Cisco UCS Fabric Interconnects

8. Which type fields can an engineer use to identify an iSCSI participant? (Choose two.)

type

preshared key

port number

identifying tag

hostname

9. An engineer deploys LISP VM mobility .

Which feature is configured on the interfaces that have VM mobility enabled?

IP redirects

flow control

proxy ARP

HSRP

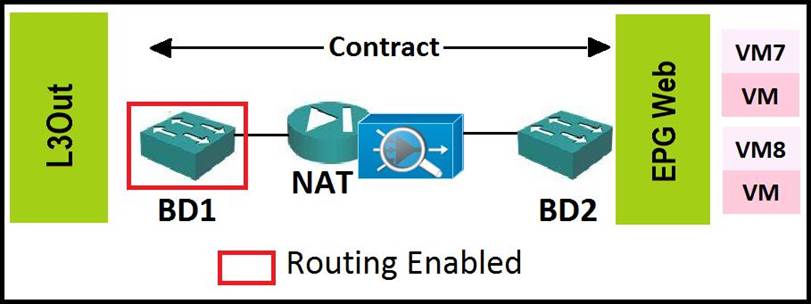

10. Refer to the exhibit.

What must be the default gateway of the servers in EPG Web?

subnet address of BD1

subnet address of L3Out

subnet address of BD2

NAT appliance

Page 2 of 4

11. An engineer is expanding an existing ISCSI environment and must choose an addressing scheme. When checking one of the devices, the engineer discovers this target device naming used {prefix}. 2019-01.com.acme.123:00. ftd0cb21.bcb389458389

Which addressing scheme was used in the environment?

Extended Unique identifier

Fibre Channel ID

ISCSI Qualified Name

Network Address Authority

12. Which approach splits a pair of clustered fabric interconnects into two standalone devices?

Run the disable fips-mode command on each fabric interconnect.

Run the connect local-management command on each fabric interconnect.

Erase the configuration of both fabric interconnects.

Unplug the Layer 1 and Layer 2 interfaces between the devices.

13. What is a design consideration when implementing FSPF?

Routes are based on the domain I

Routes are based on the distance vector protocol.

FSPF runs only on F Ports.

FSPF runs on a per-chassis basis.

14. Which feature provides a sandbox to convert NX-OS CLI commands to REST-based scripts on Cisco Nexus 7700 Series Switches?

NX-API

Postman

Bash shell

Guest shell

15. The management of the Cisco Nexus switches is provided over an isolated put-of-band network. The VDC feature is configured on the Cisco Nexus core switches .

How is out-of-band management access provided for each VDC?

All the VDC have the same out-of-band IP address.

Each VDC has a dedicated out-of-band Ethernet management port.

Each VDC has a unique out-of-band IP address from the same IP subnet.

Each VDC has a unique out-of-band IP address from different IP subnets among VDCs.

16. An engineer must configure an interface for managing and orchestrating a Cisco Nexus device. The interface must be operational if the data and control planes crash, support IPv4 and IPv6 addressing, and have been access to its own VRF instance .

Which interface should be used to meet these requirements?

management interface

lookup

interface VLAN

Physical interface

17. An engineer configured the OSPF protocol in the vPC topology. During the catastrophic failure of one of the vPC the member switches, the traffic was routed to a black hole. This route was caused by the long convergence time caused by the delay of the of the vPC member switch reboot. After the failure, the engineer rebooted both switches, but the secondary switch powered on before the primary one. It caused all the vPCs to be shut down due to consistency-check violations .

Which two features must be used to prevent these situations from happening in the future? (Choose two.)

auto-recovery

system priority

delay restore

ip arp synchronize

peer-gateway

18. A network architect designs a high-availability architecture for the Cisco UCS Fabric interconnects that installed in a data center. The architecture must support clustering and redundancy .

Which architecture meets these requirements?

dual connections from port L1 to L1and one connection from port L1 to L1 with twinax cables

dual connections from port L1 to L1 and one connection from port L2 to L2 with Ethernet cables

dual connections from port L1 to L2 and one connection from port L2 to L1 with Ethernet cables dual

dual connections from port L1 to 12 and one connection from port L2 to L1 with twinax cables

19. A network engineer is designing a Cisco Hyperflex infrastructure. The Infrastructure will be connected to an external SAN fiber channel array and must support Microsoft clustering.

Which storage connectivity method must be used to meet these requirements?

Internet Small Computer Systems Interface

Fibre Channel over Ethernet

raw device mapping

server message block

20. Which mode must be enabled on a Cisco UCS Fabric Interconnect to connect directly to a storage array?

NPIV mode

FC end-host mode

NPV mode

FC switching mode

Page 3 of 4

21. Which authentication software natively runs within the CLI of Cisco NX-OS devices?

Python

Ansible

Puppet

Chef

22. An engineer is designing a Multichassis EtherChannel topology in which two switches must appear as a single device to a third downstream switch?

Which two technologies meet this requirement? (Choose two.)

HSRP

VSS

vPC

802.1q

FEX

23. Which two statements describe Ethernet switching mode on Cisco UCS 6100 Series Fabric Interconnects? (Choose two.)

STP runs on the uplink ports of each VLAN, as defined by PVSTP+.

STP runs on the uplink ports of each VLAN, as defined by MST

The STP parameter configuration is unsupported.

The STP parameter configuration is supported.

STP runs on the server ports.

24. A customer wants to deploy a Layer 2 extension over a transport infrastructure for multiple data centers. The data center technology should support a localized Layer 3 gateway, a separate flooding domain, and STP isolation per data center .

Which DCI technology meets these requirements?

Pseudowire

VXLAN EVPN

E-Line

E-LAN

25. Which two configurations allow for routing traffic between two VDCs? (Choose two.)

Connect the VDCs to an external Layer 3 device.

Cross-connect the ports between the VDCs.

Create VRF-aware software infrastructure interfaces.

Create a policy map in the default VDC that routes traffic between the VDCs.

Create interfaces in the VDC that can be accessed by another VD

26. A network design must include a solution to run CLI commands remotely on Cisco Nexus 9000 Series Switches. The customer's security policy requires secure login credentials and an encrypted underlying transport. The command output will be processed using tools that support XML or JSON encoding .

Which two components should be included in the design? (Choose two.)

SSH

NX-API

HTTP

HTTPS

Bash shell

27. What is the disadvantage of asynchronous storage replication as compared to synchronous storage replication in a disaster recovery design?

reduction in application performance

distance limitations

specific backup requirements

potential data loss

28. Which two features are provided by deploying an OOB management network in a Cisco Nexus data center? (Choose two.)

Layer 3 path for monitoring purposes

Layer 2 path for server traffic

Layer 2 path for a vPC peer link

Layer 3 path for vPC keepalive packets

Layer 3 path for server traffic

29. A engineer wants to eliminate the manual process of checking the system hardware and firmware against a specified hardware compatibility tool. The tool must be able to manage an extensive list of devices including cisco HyperFlex, MDS, and Nexus switches. The tool must manage hardware in multiple data centers so it should be deployed on public cloud infrastructure .

Which tool meets these requirements?

Cisco intersight

Cisco UCS director

Cisco data center network manager

Cisco tetration

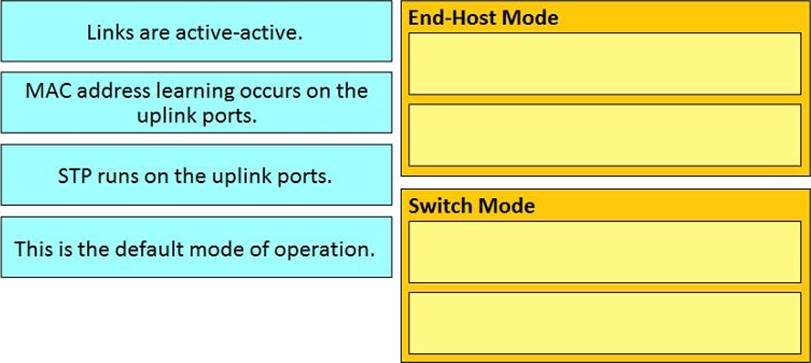

30. DRAG DROP

Drag and drop the feature descriptions from the left onto the correct UCS Fabric Interconnect modes on the right.

Page 4 of 4

31. An engineer manages hundreds of Cisco Nexus Series and 9000 Series Switches that are installed at several data centers and wants to use one of the built-in automation tools of the Cisco NX-OS Guest Shell to automate daily activities. The engineer requires a tool that uses imperative language, has extensive support, and is object-oriented .

Which automation tool should be used to meet these requirements?

Phython

Bash

YAML

Perl
