When will a candidate take and pass 300-615 Troubleshooting Cisco Data Center Infrastructure (DCIT) exam? 300-615 Cisco DCIT exam is one of the concentration exams of CCNP Data Center certification which focus on your knowledge of troubleshooting a data center infrastructure, including:

Network
Compute platforms
Storage network
Automation

So how to prepare for the 300-615 exam well to make sure you can pass Cisco CCNP Data Center 300-615 DCIT exam successfully? We recommend to choose the great study materials for learning Cisco 300-615 exam questions. 300-615 study guide are collected for all someone who takes. We ensure that you can pass 300-615 Troubleshooting Cisco Data Center Infrastructure (DCIT) exam in the first attempt.

We are sure 300-615 study guide are valid, you can find the 300-615 free questions for checking first.

Page 1 of 2

1. During a boot process of a Cisco UCS C-Series Rack Server, an engineer receives a "No Signal" message from the vKVM and physical connection.

Which set of steps resolves the issue?

1- Disconnect the power cord II- Confirm that all cards are property seated 3- Connect the power cord and power on the server

1- Power off the server and disconnect the power cord II - Confirm that all cards are property seated 3- Connect the power cord and power on the server

1- Power off the server and disconnect the power cord II - Confirm that all cards are available 3- Connect the power cord and power on the server

1- Disconnect the power cord II - Confirm that all cards are properly seated 3- Connect the power cord

2. A server administrator attempts to change the Cisco IMC KVM certificate to one signed by a private CA, but the certificate is not being accepted.

What can cause this process to fail?

using a certificate with a password-protected private key

RSA encryption being used in the generation of the certificate.

AES encryption being used in the generation of the certificate.

public IP addres of the Cisco IMC not being included in the SA

3. An engineer enables the packet postcards feature on a Cisco Nexus 9000 Series Switch but receives the error message "Error: Cannot configure postcard when inband-telemetry is configured."

Which action resolves the issue?

Disable the telemetry feature

Disable the software-telemetry feature

Disable the hardware-telemetry feature

Disable the inband-telemetry feature

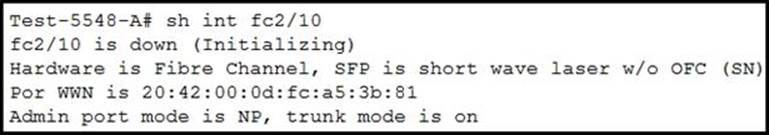

4. Refer to the exhibit.

A new Cisco Nexus 5548 Switch connects to a network. SAN switching is configured on the switch. The switch fc2/10 NP uplink is shown in the exhibit.

Which action ensures that fc2/10 is in an up state?

Replace the SFP port module in fc2/10.

Configure the admin port type E on the upstream switch that connects the port.

Enable NPIV on the upstream switch that connects the port.

Configure the BB_credit buffers on the upstream switch that connects the port.

5. An engineer is troubleshooting a packet flow from an access leaf to spine.

Which EVPN routes are expected on this connection?

EVPN Type 1-5

EVPN Type 0,9,15

EVPN Type 9-15

EVPN Type 0,16

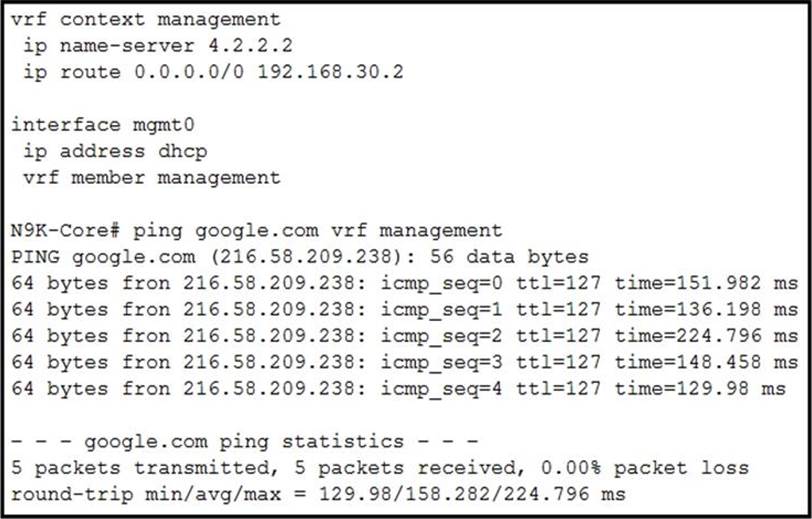

6. Refer to the exhibit.

A network engineer has connected the Nexus switch management port to the Internet using DHCP to allow the Guest shell running on the switch to download Python packages. The engineer can ping google.com successfully from the Nexus switch, but the Guest shell failed to download any Python packages.

Which action resolves the problem?

Update the Python packages on the Cisco Nexus switch directly.

Manually configure DNS in the Guest shell, even if it is claimed on the Cisco Nexus switch through DHC

Manually configure NTP in the Guest shell.

Connect Guest shell to data plane interfaces to be able to connect to the networks outside the Cisco Nexus switch.

7. An engineer discovers that an NPV/NPIV uplink experiences a heavy load and plans to add more uplinks.

Which statement about what occurs when the new uplinks are added is true?

Only new connections use the new uplinks automatically.

Paths must be defined before new connections can use the new uplinks.

All connections must be reset before the new uplinks can be used.

New and existing connections use the new uplinks automatically.

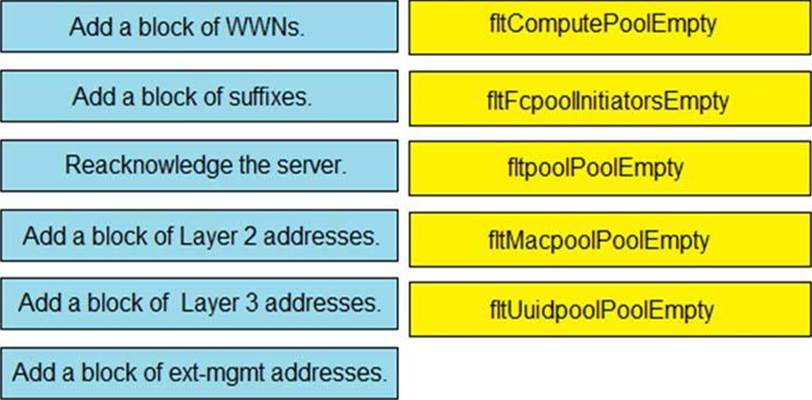

8. DRAG DROP

Drag and drop the actions from the left onto the faults that they resolve on the right. Not all options are used.

9. One of Cisco Nexus Series interfaces has become errdisabled with the error message “DCX-No ACK in 100 PDUs”.

What is the cause of this error?

The host has not responded to the Control Sub-TLV DCBX exchanges of the switch.

The acknowledgement number in the server response has not incremented for 100 exchanges.

Cisco Discovery Protocol is disabled on the switch.

LLDP is disabled on the switch.

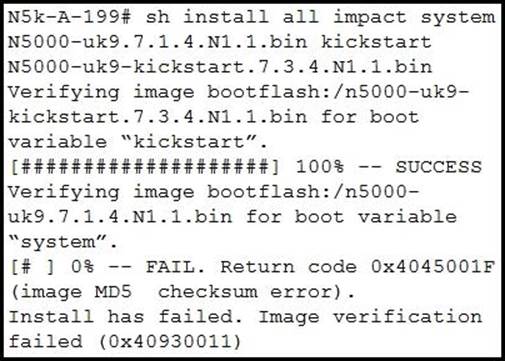

10. Refer to an exhibit.

An engineer is troubleshooting an upgrade failure on a switch.

Which action resolves the issue?

Save the system image in NVRA

Use the same system image as the kickstart image.

Load a new system image.

Reload the same system image.

Page 2 of 2

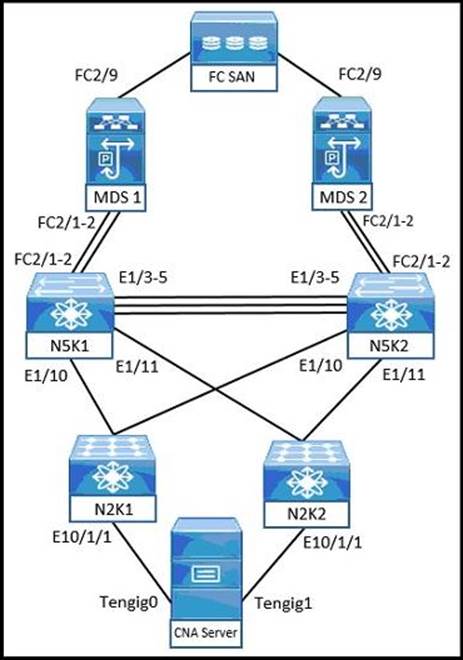

11. Refer to the exhibits.

An engineer troubleshoots switch N5K1, which fails to receive traffic from the file server

Which set of actions resolves this problem?

Bind native VLAN 10 with Ethemet1/10 and allow VSAN 101 in trunk configuration.

Assign native VLAN 10 with vfc111 and allow VLAN 1101 in trunk configuration.

Bind native VLAN 10 with Ethemet10/1/1 and allow VLAN 10 in trunk configuration

Assign native VLAN 10 with fc2.'l - 2 and allow VLAN 10 in trunk configuration.

12. A customer configures HSRP between two data centers that are interconnected with OTV. The configuration succeeds, but traffic between two ESXi virtual hosts on the same site is routed suboptimally through the OTV overlay.

Which two actions optimize the traffic? (Choose two.)

Disable first-hop redundancy.

Filter HSRP traffic by using a Layer 3 VACL on the OTV edge devices.

Filter HSRP by using a Layer 2 MAC-list on the ESXi vSwitch.

Filter HSRP traffic by using a Layer 3 VACL on the ESXi vSwitch.

Filter HSRP by using a Layer 2 MAC-list on the OTV edge devices.

13. An engineer must configure Linux hosts that are deployed on Cisco UCS B-Series Servers to boot from SAN. The SAN boot policy is configured in Cisco UCS Manager, and the boot order is verified to be set as expected However, the Linux hosts fail to boot.

Which action resolves the issue?

Remove all of the local storage that is installed

Delete and reconfigure the pWWN of the SAN boot target

Remove all of the ISO images that are mounted as a virtual CD-ROM

Delete and reconfigure the boot LUN

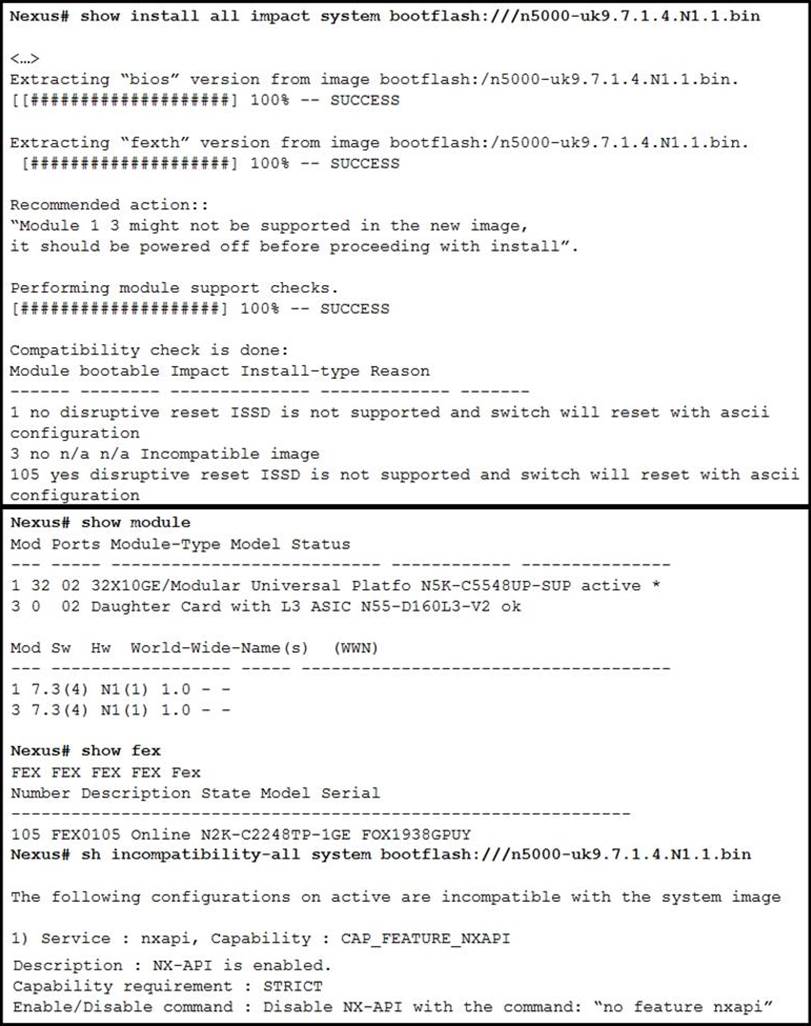

14. Refer to the exhibit.

A switch is being downgraded to an earlier release because of a problem with the current release. After the switch is downgraded, it can no longer forward traffic.

Which action resolves the issue?

Enable ISSD after the downgrade is complete.

Roll back to the original image.

Reload the switch.

Shut and no shut the interfaces to the FE

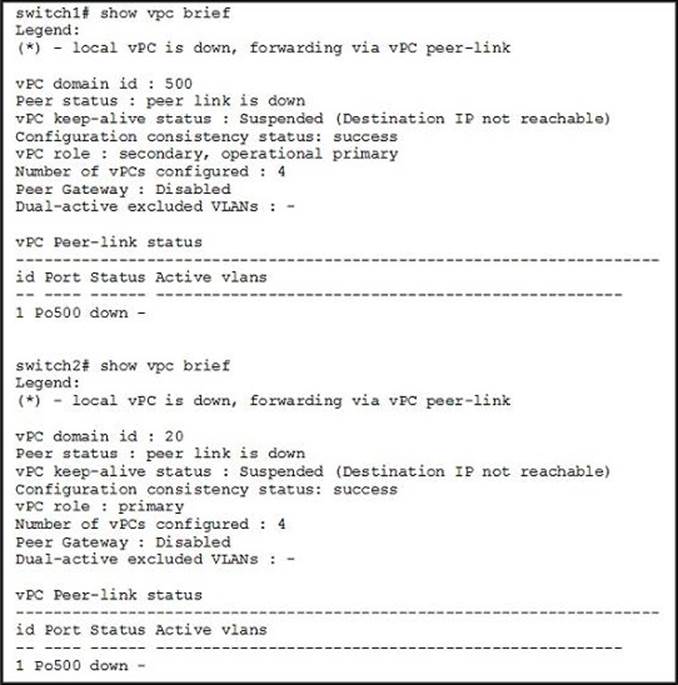

15. Refer to the exhibit.

The vPC between switch1 and switch2 does not work.

Which two actions resolve the problem? (Choose two.)

Configure the IP address on the interface.

Activate VLANs on the vP

Configure one of the switches as primary for the vP

Correct the configuration of the vPC peer link and the vPC peer keepalive.

Match the vPC domain ID between the two devices.

16. The external routes fail to propagate to leaf switches in Cisco ACI fabric Which two actions resolve the issue? (Choose two.)

Enable the VTEP pool in the fabric

Assign an MP-BGP AS number to the fabric.

Specify the spine nodes as route reflectors

Associate the correct contract to the L30ut.

Configure an MP-BGP area.

17. Refer to the exhibit.

The initiator that has FC ID 0x970102 fails to communicate with the target that has FC ID 0x970200.

What action resolves the issue?

Reconfigure the initiator and the target to be in the same zones.

Reactivate the zoneset.

Reset the port for FC ID 0x970102 and FC ID 0x970200 to log in to the fabric.

Reset the port for FC ID 0x970209 and FC ID 0x9700c2 to log in to the fabric.

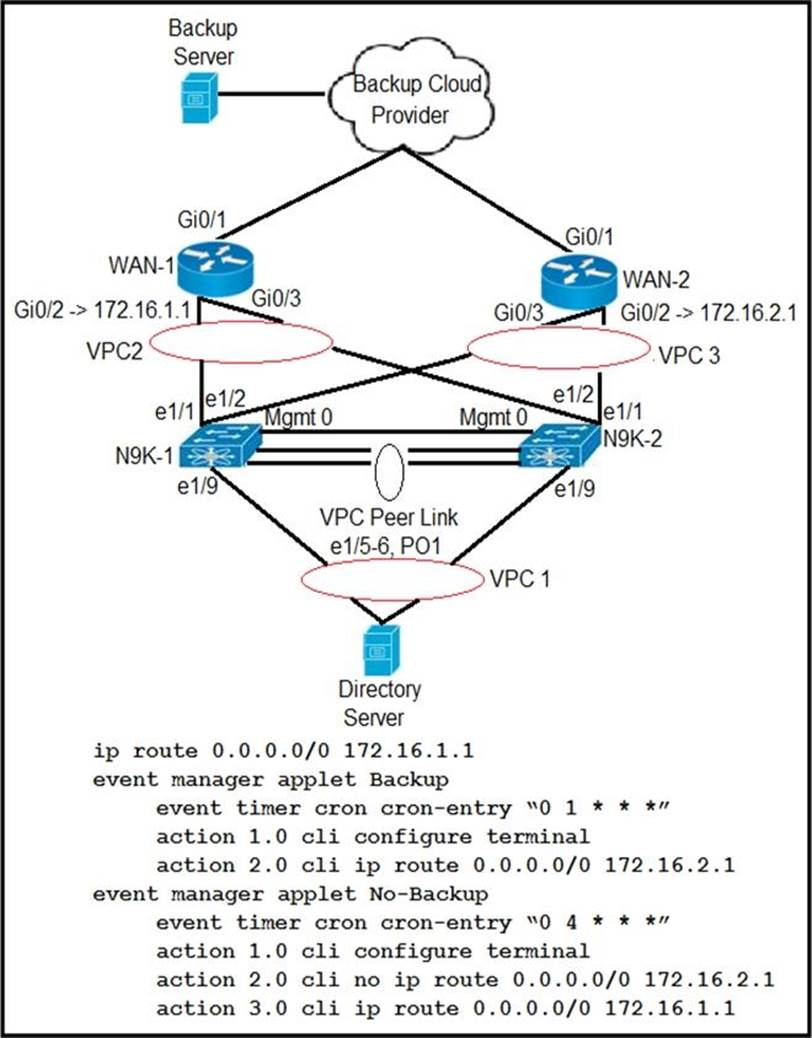

18. Refer to the exhibit.

Partial configuration from N9K-1 and N9K-2 is included.

The client has two WANs connected.

✑ WAN-1 is for normal business-day activities.

✑ WAN-2 is for server backups during nonworking hours of 1:00 a.m. to 5:00 a.m. daily.

The client says that at the scheduled time for backup, the data center server failed to use the WAN-2 link to back up the servers to the cloud backup system.

What is the solution to this problem?

The event timer must be written in epoch time format.

The Cisco Nexus switch must be configured with one applet because a configuration with two applets will fail.

The Cron entry must be configured without double quotes.

The applet called “Backup” must include an action to remove the current static route.

19. An engineer troubleshoots a VXLAN EVPN data center. The applications in the data center fail to reach the DNS server that is located at IP 10.10.10.10. The engineer examines the BGP EVPN routing table and notes that the IP prefix route covers the DNS server is missing.

Which action resolve the issue?

Set the IP prefix route to represent [5]:[0]:[0]:[32]:[10.10.10.10]/224 in the routing table.

Configure an IP ARP entry to represent [2]:[0]:[0]:[48]:[0050.569f.1285]:[32]:[10.10.10.10]/272 in the routing table

Set the IP prefix route to represent [2]:[0]:[0]:[48]:[0050.569f.1285]:[0]:[0.0.0.0]/216 in the routing table

Configure an IP ARP entry to represent [4]:[0300.0000.00fc.bd00.0309l[32]:[10.10.10.10]/136,n the routing table

20. An IOM fails during a firmware upgrade and is unresponsive.

Which action recovers the module?

Restore UCSM configuration from backup.

Roll back to the previous firmware.

Use Auto Install to reinstall the firmware.

From the peer IOM, reset the faulty module.
