Page 1 of 3

1. For a ‘boot from SAN’ configuration, which two features must be enabled? (Choose two)

FCOE

UDLD

NPIV

FCSP

VPC

2. A disaster occurred and both Cisco UCS Fabric Interconnects must be replaced. You must restore the system from a "full state" backup.

Which two steps will accomplish this task? (Choose two.)

Remove the current firmware from the new Fabric Interconnects.

Restore the "full state" backup through the primary Fabric Interconnect's initial system setup wizard.

Restore the "full state" backup using the UCS Manager "import configuration" wizard.

Upgrade the new Fabric Interconnects to the same version of firmware as the previous Fabric Interconnects.

3. Which is a valid connectivity option for a FlexPod?

Note some of these may also be 'valid' options outside of a FlexPod architecture but do not specifically meet FlexPod scalability and availability requirements.

UCS B-Series > 2232PP FEX > UCS FI > Nexus 5548 < FAS

UCS C-Series > 2232PP FEX > UCS FI > Nexus 5548 < FAS

UCS B-Series direct attach FAS

UCS C-Series > Nexus 3048 < FAS

UCS C-Series direct attach FAS

UCS B-series > UCS FI > 2232PP FEX > Nexus 5548 < FAS

UCS B-Series > UCS FI > Catalyst 3750 < FAS

4. Which sends support summary information to NetApp through HTTPS?

AutoSupport

FlexSupport

SnapSupport

TechSupport

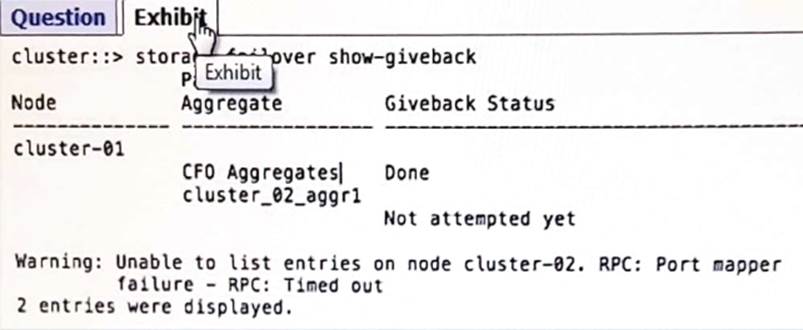

5. Exhibit:

You have a NetApp cluster and have just performed a storage failover giveback command from the CLI.

Referring to the exhibit, what is the status of the storage failover process?

The giveback failed because cluster-01 was not able to communicate with the partner’s cluster LIFs.

The giveback is partially completed waiting for node cluster-01 to give back the partner’s SFO aggregate.

The giveback is partially completed waiting for node cluster-02 to give back the partner’s SFO aggregate.

The giveback failed because the partner node was not in a “waiting for “giveback” state.

6. What management solution can provision all three components of a FlexPod (NetApp storage, Cisco UCS compute and Cisco Nexus network)?

Cisco UCS Central

Cisco FlexPod Manager

NetApp OnCommand Insight

Cisco UCS Director

NetApp FlexPod Manager

7. Which management tool is used to configure and monitor centralized policies for multiple Cisco UCS domains?

UCS Manager

UCS Director

UCS Central

UCS Performance Manager

8. Which two features allow multiple fabric logins through a single port? (Choose two.)

NPIV

vPC

NPV

LLDP

9. An administrator is configuring a Flexpod Datacenter solution. The UCS service profiles will use FCoE connectivity to the NetApp cluster.

Which pool is needed to configure the vHBA templates?

WWPN pool

MAC pool

IQN pool

WWNN pool

10. When connecting the Nexus 1110-X to the Nexus switch, what Spanning Tree port type is used?

Edge

Trunk

Network

Edge trunk

Normal

Page 2 of 3

11. Which two are required for single-wire management for Cisco UCS C-Series? (Choose two)

UCS Manager 2.1 or higher

VIC 1240

Redundant Nexus 2232PP FEX

10 GB LOM

FI 6200 family only

VIC 1225

12. When using Clustered Data ONTAP 8.1 and later, what is the default for new aggregates?

32-bit aggregates

64-bit aggregates

128-bit aggregates

cluster aggregates

traditional aggregates

Vserver aggregates

13. Which two are two possible features of the ‘Call Home’ feature in UCS Manager?

Generates a text message to configured cell phone numbers

Generates a syslog event

Ability to proactively open a case with the Cisco TAC with the ‘Smart Call Home’ feature

Generates emails to predefined email addresses when a problem is detected

Allows UCS to proactively pull down new software updates from Cisco

14. You installed a new NetApp cluster running clustered Data ONTAP. There is a single Storage Virtual Machine (SVM) named esx1 on the cluster.

A volume named esx_datastore1 is created in the SVM esx1. The name of the root volume for the esx1 SVM is esx1_rootvol. The default export policy was applied to the volume esx1_rootvol.

You verified that the export policy applied to esx_datastore1 contains a single rule that allows all clients to mount the volume as read/write using any version of NFS. A Linux client attempts to NFS mount the volume and receives a Permission Denied error.

In this scenario, what caused this error?

NFS has not been configured on the SVM esx1.

The volume esx_datastore1 has not been mounted into the namespace of the esx1 SV

UNIX permissions for the volume esx1_rootvol are not set to read/write.

The default export-policy does not have at least one rule to allow all clients read-only access.

15. You are attempting to establish a cluster peer relationship between two NetApp clusters, but the peering process fails.

What is a cause for this failure?

The intercluster LIF on each node cannot communicate with the intercluster LIF on each node in the peer cluster.

The cluster LIFs on each node cannot communicate with the cluster LIFs on each node in the peer cluster.

The node management LIF on each node cannot communicate with the node management LIF on each node in the peer cluster.

The cluster management LIF for the cluster cannot communicate with the cluster management LIF for the peer cluster.

16. Given the following switch output, where would you expect see notification level messages?

N5K-1# show logging info.

Logging console: enabled (Severity: error)

Logging monitor: enabled (Severity: informational)

Logging linecard: enabled (Severity: emergency)

Logging fex: enabled (Severity: notifications)

Logging time stamp: seconds

Logging server: disabled

Logging logfile: enabled

On the console

On the terminal sessions

On the linecard

Notification messages will not be seen anywhere

17. Which type of pools do you need to create vHBA templates?

MAC

WWNN

IQN

WWPN

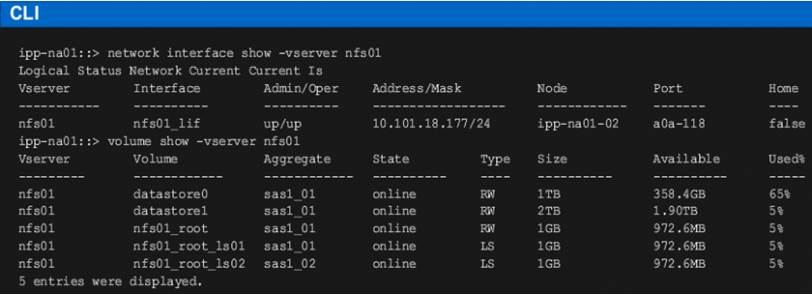

18. Click the Exhibit button.

On your NetApp storage system, you create a volume named datastore1, mount it to a junction path, and then set the correct export policy. When you attempt to mount the volume from VMware ESXi as a datastore, the server is unable to mount the path /datastore1. You verify that your existing NFS datastore (/datastore0) on the same NetApp storage system SVMis functioning normally.

Referring to the exhibit, what is preventing the server from mounting the new datastore?

The volume is too large to be mounted as an NFS datastore

The load-sharing mirrors need to be updated.

Two volumes cannot be mounted using the same LIF IP address.

The LIF needs to be at its home-port when the volume is mounted.

19. The storage administrator created an export policy for a volume on a NetApp cluster.

The export policy contains a single export rule with the parameters shown below.

- protocol nfs C rorule any

- clientmatch 10.1.16.0/255.255.255.0 - rwrule any

Two hosts attempt to access the volume using the NFS protocol shown below.

- HostA with IP address 10.1.17.37 sends an access request using the NFSv3 protocol

- HostB with IP address 10.1.16.24 sends an access request using the NFSv4 protocol

Which statement about this scenario is true?

HostA's access to the volume will be blocked by the protocol parameter; HostB will be granted RO/RW access to the volume.

HostA's access to the volume will be blocked by the clientmatch parameter; HostB's access to the volume will be blocked by the protocol parameter.

HostA will be granted RO/RW access to the volume; HostB's access to the volume will be blocked by the protocol parameter.

HostA's access to the volume will be blocked by the clientmatch parameter; HostB will be granted RO/RW access to the volume.

20. Which service may be used to manage users and groups in a vSphere environment?

Microsoft Active Directory (AD)

Network Time Protocol (NTP)

VMware vSphere Storage APIs for Array Integration (VAAI)

Domain Name System (DNS)

Page 3 of 3

21. Which two database types are supported with the VMWare vCenter 6.0 Server Appliance? (Choose two.)

Oracle

vPostgres (embedded)

Microsoft SQL Server Express

Microsoft SQL Server Enterprise

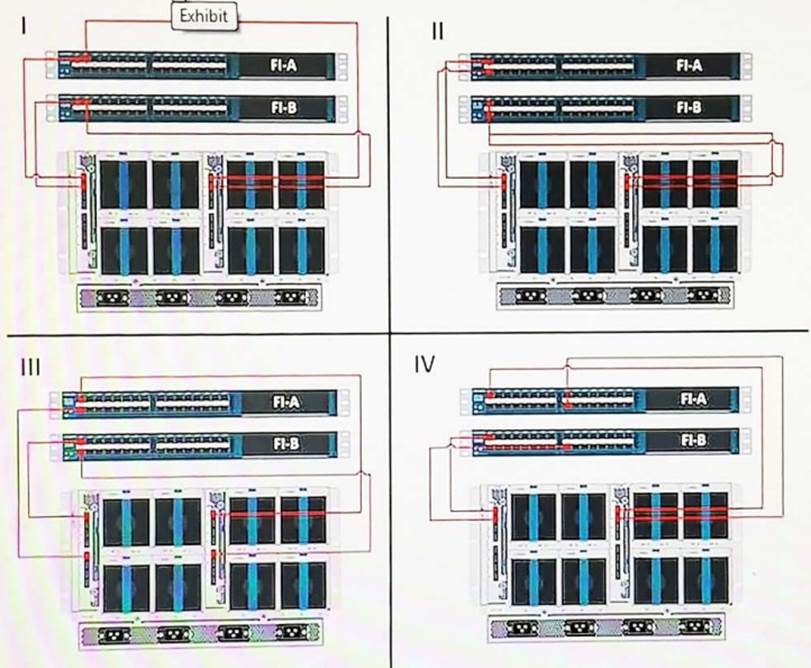

22. Exhibit:

You just finished cabling a UCS 5108 chassis to the Fabric Interconnects.

Which diagram in the exhibit is cabled correctly according to the CVD guidelines?

III

23. You want to verify that you have configured Multipath HA correctly for all of the attached disk shelves on a NetApp cluster.

Which two commands would you execute from the cluster CLI prompt to accomplish this task? (Choose two.)

sysconfig -a

node run Cnode * -command disk show

node run Cnode * storage show disk -p

node run Cnode * sysconfig -a

24. An administrator just finished installing Windows Server 2012 (Core) with Hyper-V.

Now the administrator must deploy a new VM using PowerShell with the parameters shown below.

--Name: web server

--Memory: 10 GB

--Hard Drive: Existing Disk (d:vhdBaseImage.vhdx)

Which PowerShell command creates the VM based on the Information in the scenario?

New-VM-Name web server-MemoryStartupbytes 1 GB- VHDPath BaseImage.vhdx

New-VM-Name “web server” - MemoryStartupbytes 10 GB- VHDPath d:vhdBaseImage.vhdx

New-VM-Name “web server”- MemoryStartupbytes 10 GB - VHDPath d:vhdBaseImage.vhdx -NewVHDSireBytes 6000000

new- VM- Name web server- MemoryStartupBytes 10GB- VHDPath BaseImage.vhdx

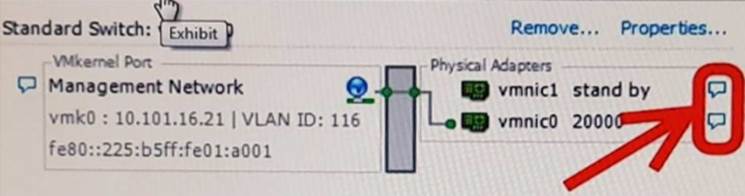

25. Exhibit:

You have a FlexPod solution with vSphere ESXi. When you click the icons shown in the exhibit, you do not see any network connectivity details.

Which Cisco UCS policy type should you create to enable visibility of these details?

Link Profile Policy

Link Protocol Policy

LAN Connectivity Policy

Network Control Policy

26. An administrator is deploying a FlexPod solution for use with VMware vSphere 6.0. The storage environment consists of a two-node AFF8040 cluster running clustered Data ONTAP 8.3 with a single DS2246 disk shelf fully populated with 800 GB SSD drives.

The system is configured to use Advanced Drive Partitioning (ADP). The administrator wants to ensure that each node is configured with the same amount of recourses while also using hot spares for resiliency.

In this scenario, how many total disk partitions will each node have available for the data aggregate?

27. You have a two-node NetApp clustered Data ONTAP storage system, a Cisco UCS system with two Fabric Interconnects, and a dual-fabric (Fabric-A and Fabric-B) Fibre Channel topology with the information shown below.

- Node 01 has one 10Gb FCoE connection to Fabric-A and one 10Gb FCoE connection to Fabric-B.

- Node 02 has one 10Gb FCoE connection to Fabric-A and one 10Gb FCoE connection to Fabric-B.

- Fabric Interconnect A has a two-port FCoE port channel to Fabric-A

- Fabric Interconnect B has a two-port FCoE port channel to Fabric-B.

- Each IOM in the Cisco UCS blade chassis has four uplinks into the Fabric Interconnects.

- A service profile running VMware ESXi has one vHBA in Fabric-A and one vHBA in Fabric-B.

How many paths should ESXi see to its FC boot LUN?

28. A server administrator calls you complaining that an uplink on both UCS Fabric Interconnects went down. Each Fabric Interconnect has a vPC to the Nexus 500 switches.

After logging in to the switches, you notice that all vPC member ports on the secondary vPC peer switch are down. The vPC peer keepalive is still operational.

What is the problem in this scenario?

The vPC peer link is down.

Both UCS Fabric Interconnects rebooted.

The vPC feature is disabled.

A new VLAN was added to the UCS vPC member ports.

29. To support Storage Virtual Machines, which type of unique login account must be created?

admin, for the cluster

admin, for each Storage Virtual Machine

vsadmin, for each Storage Virtual Machine

vsadmin, for the cluster

30. Which backup type stores Service Profile information as a small editable file?

Full Backup

All Configurations

Logical Configuration

System Configuration
