300-810 CLICA exam is one of the concerntration exams of CCNP Collaboration certification, which mainly tests your skills in Single sign-on, Cisco Unified IM and Presence,Cisco Unity Connection and Cisco Unity Express and Application clients. Cisco 300-810 CLICA practice exam are so good with the real exam questions and answers to help you prepare for Implementing Cisco Collaboration Applications (CLICA) certification exam. You can read real 300-810 exam questions and understand the answers with PDF file and free software.

Before getting Cisco 300-810 practice exam, you can come here to check 300-810 free questons.

Page 1 of 3

1. Refer to the exhibit.

Cisco Unity Connection and Cisco Unified Communications Manager are integrated by using SCCP. The Voice Mail Ports are registered. Users report that calls fail when forwarded to voicemail .

Which is a cause of the issue?

The call forward and call pickup settings do not have a CSS on Forward All.

The Voice Mail Port partition on the CSS of the phone is missing.

The Voice Mail Pilot is not configured with a CSS that contains the INTERNAL_P

The CSS on the Voice Mail Pilot is missing partitions for user phones.

2. To redirect calls from the phone extension for user A to the voicemail greeting, which call routing rule should be used in Cisco Unity Connection?

Attempt Forward forwarded routing rule

Opening Greeting direct routing rule

Attempt Sign-In direct routing rule

Opening Greeting forwarded routing rule

3. An administrator is configuring digital networking between Cisco Unity Connection clusters .

What are two requirements for the configuration? {Choose two.)

end-user credentials

IP address/FODN of LDAP server

IP address/FQDN of Cisco UCM servers

system administrator credentials

IP address/FODN of the Cisco Unity Connection servers

4. An engineer is configuring DNS for service discovery in a jabber deployment for On-premises Clients .

Which snippet will complete the SRV record name _ tcp.example.com?

_cisco_uds

_collab_edge

_xmpp. server

_xmpp-client

5. Fraudulent calls are being made from Cisco Unity Connection .

Which action prevents the calls from reaching the PSTN using SCCP integration?

Change the configuration of the routing rule.

Change the CSS of the voicemail port.

Change the Rerouting CSS on the trunk to Cisco Unity Connection.

Remove values from restriction table.

6. After integrating Cisco Unity Express with Cisco Unified Communications Manager Express, users report that the system does not respond to their digit presses .

Which two configuration snippets resolve this issue? (Choose two.)

dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-kpml codec g729r8

dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-notify codec g711ulaw

dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay rtp-nte codec g711ulaw

dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-kpml codec g711ulaw

dial-peer voice 6800 voip destination-pattern 5... session protocol sipv2 session target ipv4:10.3.6.127 dtmf-relay sip-notify codec g729r8

7. An engineer needs to configure individual call handler greetings on Cisco Unity Connection so that a single greeting can override all other greetings set by users during a holiday period .

Which type of greeting should be configured to accomplish this goal?

internal

Holiday

Alternate

Closed

8. Which component of SAML SSO defines the transport mechanism that is used to deliver the SAML messages between entities?

profiles

metadata

assertions

bindings

9. Which two Cisco Unity Connection logs are used to troubleshoot issues with Message Waiting Indicators? (Choose two.)

Connection IMAP Server

Connection Mailbox Sync

Connection Notifier

Connection Message Transfer Agent

Connection Conversation Manager

10. What are two Cisco Jabber 12.6 on-premises deployment types that can be run on a Windows-enabled PC? (Choose two.)

Contact Center Agent

IM-only

multicloud-based

Full UC

cloud-based

Page 2 of 3

11. Which SSO authentication method requires no action from the user when the session token times out?

web form

smart card

external database

local authentication

12. Which SAML 2.0 profile is supported by Cisco UCM, Cisco Unified IM and Presence, and Unity Connection version 10.x and above?

single logout

web browser SSO

name identifier management

identity provider discovery

13. Digital networking is configured between two Cisco Unity Connection clusters using an HTTPS connection .

Which two objects are replicated between these two clusters? (Choose two.)

partitions and search spaces

user greetings

user templates and user greetings

call handlers

users and their corresponding mailboxes

14. Secure XMPP communication is required for XMPP federation with external domains and the Cisco IM and Presence .

Which certificate is used for XMPP interdomain federation when connecting to an externally federated domain?

cup

cup-xmpp

cup-xmpp-s2s

Tomcat

15. Which SIP request type is used by Cisco Unity Connection to inform Cisco Unified Communications manager that the Message Waiting Indicator must be turned on or off for a specific line?

NOTIFY

UPDATE

PUBLISH

16. What is the primary mechanism in Cisco Unity Connection that is used for toll fraud prevention?

fraud tables

transfer rules

calling search spaces

17. Which two steps are needed to configure high availability in Cisco IM and presence? (choose two.)

Enable the Failover Check box

Configure CUP administrator

Assign the subscriber to the redundancy group

Select the enable high availability checkbox and save the configuration change

Configure the CUP AXL user.

18. An engineer is importing users into Cisco Unity Connection using AXL and discovers that some users are not listed in the import view .

Which action should be taken to resolve this issue?

Configure the user primary extension to their directory number.

Configure the user digest credentials to match the user password.

Configure the user access control group assignment to Standard CTI Enabled.

Configure the username and password in LDA

19. An engineer is checking the Cisco Unified Communications Manager and Cisco Unity Connection integration and presses the Message button on a phone to check the voicemail .

Which action does Cisco Unified CM take?

Cisco Unified CM looks up the voicemail pilot configured to dial.

Cisco Unified CM routes the configured hunt pilot to Unity Connection.

Cisco Unified CM looks up the hunt pilot configured to dial.

Cisco Unified CM sends an AXL query to Unity Connection.

20. Which function of the Cisco IM and Presence high availability solution is true?

When the server has been restored to a normal state, user sessions remain on the backup server.

When an event takes place, the end user sessions are not moved from the failed server to the backup.

When the server has been restored, the server automatically fails back.

When a high availability event takes place, the end user sessions are moved from the failed server to the backup.

Page 3 of 3

21. Which two child elements can be in an XMPP message stanza? (Choose two.)

<body/>

22. An administrator is setting up the Cisco Unified IM and Presence on-premises high availability feature and wants the Server Recovery Manager to initiate failover after 90 seconds. However, failover is happening after 60 seconds How is this issue corrected?

Change peer Heartbeat Timeout to 90 seconds.

Change Keep Alive (Heartbeat) Interval to 90 seconds

Change critical service delay to 90 seconds.

Change keep Alive (Heartbeat) Timeout to 90 seconds.

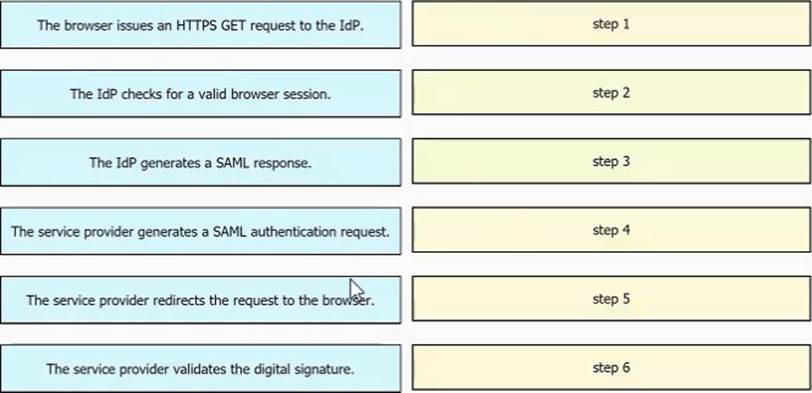

23. DRAG DROP

Drag and drop the steps of the SAML SSO process from the left into the order on the right.

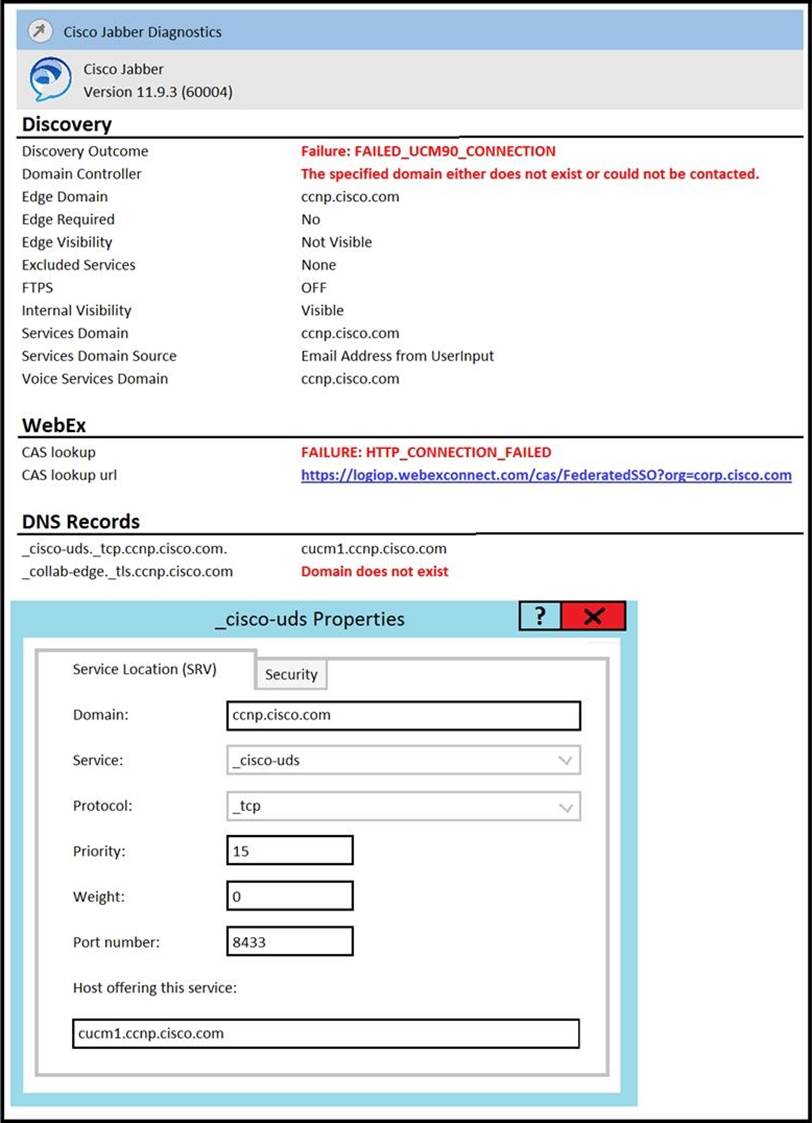

24. Refer to the exhibit.

Users connected to the internal network report a “Cannot communicate with the server” error while trying to log in to Cisco Jabber using auto service discovery. The Jabber diagnostics and the SRV record configuration are as shown in the exhibit. The host cucm1.ccnp.cisco.com is correctly resolved by the user desktops with the Cisco Unified Communications Manager IP address .

Why is the user not able to log in?

SRV protocol is not set up correctly. It should be _tls instead of _tcp.

Marking weight as 0 on the SRV record makes it inactive, so Jabber cannot discover the Cisco Unified C

The port specified on the SRV record is wrong.

The domain ccnp.cisco.com does not exist on the DNS server.

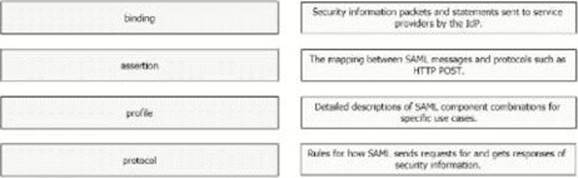

25. DRAG DROP

Drag and drop the SAML components from the left onto the descriptions on the right.
