Aruba Certified Mobility Expert Written Exam HPE6-A79 Test Questions

By Aruba Certified Mobility Expert (ACMX), Free Questions Online, HPE , , , , 0 Comments

Aruba Certified Mobility Expert Written Exam HPE6-A79 test questions are the latest for ensuring your success. HPE6-A79 exam questions from ITExamShop are witten by the experienced team, who have collected 55 practice questions to help you pass the exam and prove your ability of WLAN design, implementation, and configuration in complex multisite highly available network environments using the Aruba Controller, Access Point, and AirWave product lines. Choosing HP HPE6-A79 Practice Exam Questions, HP HPE6-A79 Study Guide at ITExamShop is the effective way to prepare for HP HPE6-A79 exam well.

Come to read Aruba Certified Mobility Expert Written Exam HPE6-A79 Free Questions For Checking The Quality

Page 1 of 1

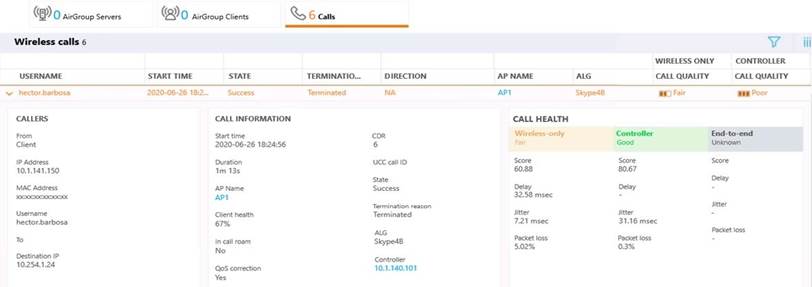

1. Refer to the exhibit.





A network administrator has recently enabled WMM on the VAP’s SSID profile and enabled UCC Skype4B ALG at the Mobility Master level. During testing, some voice and video conference calls were made, and it was concluded that the call quality has dramatically improved. However, end to end information isn’t displayed in the call’s details. Also, Skype4B app-sharing’s performance is poor at times.

What must the administrator do next in order to enable end to end call visibility and QoS correction to app-sharing service?

2. A company with 535 users deploys an Aruba solution with more than 1000 Aruba APs, two 7220 Mobility Controllers, and a single Mobility Master (MM) virtual appliance at the campus server farm. The MCs run a HA Fast failover group in dual mode and operate at 50% AP capacity.

If there is an MM or MC failure, the network administrator must ensure that the network is fully manageable and the MC load does not exceed 80%.

What can the network administrator do to meet these requirements?

3. Refer to the exhibit.

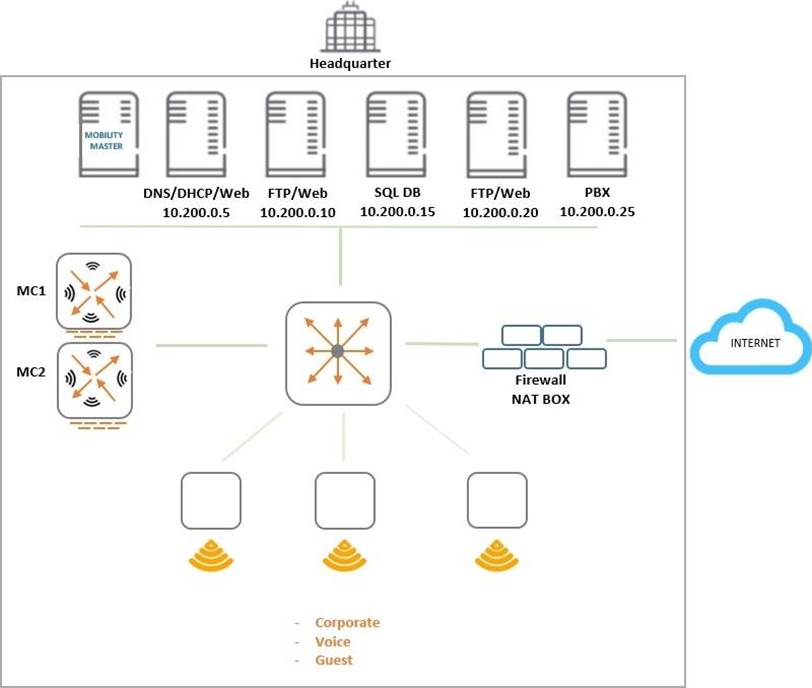

An organization provides WiFi access through a corporate SSID with an Aruba Mobility Master (MM) - Mobility Controller (MC) network that includes PEF functions. The organization wants to have a single firewall policy configured and applied to the employee role.

This policy must allow users to reach Web, FTP, and DNS services, as shown in the exhibit. Other services should be exclusive to other roles. The client NICs should receive IP settings dynamically.

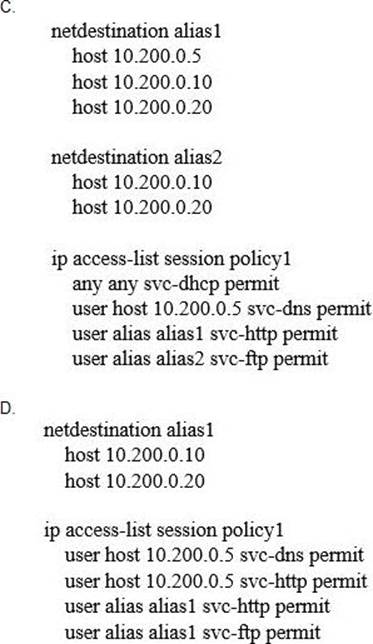

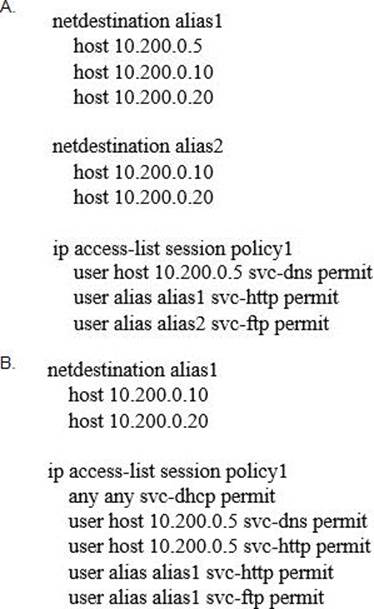

Which policy design meets the organization’s requirements while minimizing the number of policy rules?

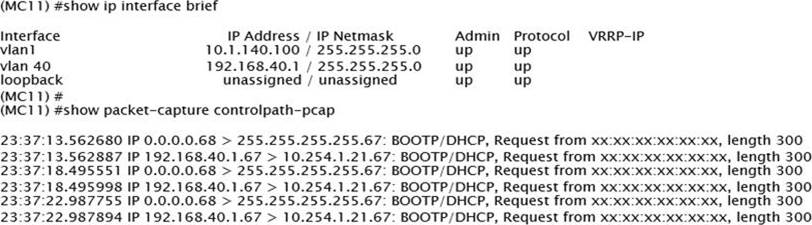

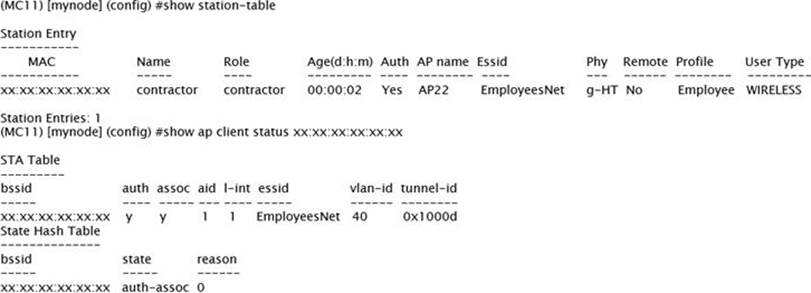

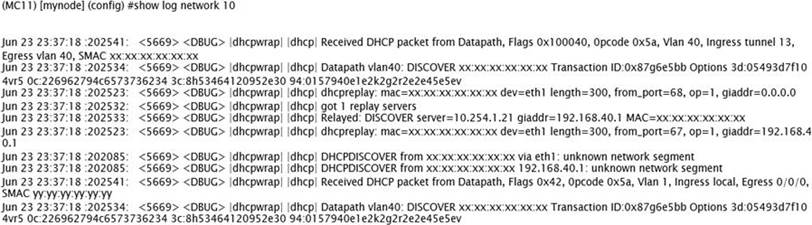

4. Refer to the exhibits.

Exhibit 1





Exhibit 2





Exhibit 3





A network administrator wants to allow contractors to access the corporate WLAN named EmployeesNet with the contractor role in VLAN 40. When users connect, they do not seem to get an IP address. After some verification checks, the network administrator confirms the DHCP server (10.254.1.21) is reachable from the Mobility Controller (MC) and obtains the outputs shown in the exhibits.

What should the network administrator do next to troubleshoot this problem?

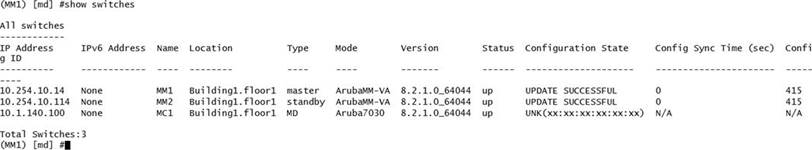

5. Refer to the exhibit.





A network administrator adds a Mobility Controller (MC) in the /mm level and notices that the device does not show up in the managed networks hierarchy. The network administrator accesses the CLI. executes the show switches command, and obtains the output shown in the exhibit.

What is the reason that the MC does not appear as a managed device in the hierarchy?

6. Refer to the exhibit.





A network administrator deploys a Mobility Master (MM) - Mobility Controller (MC) network with Aps in different locations. Users in one of the locations report that the WiFi network works fine for several hours, and then they are suddenly disconnected. This symptom may happen at any time, up to three times every day, and lasts no more than two minutes.

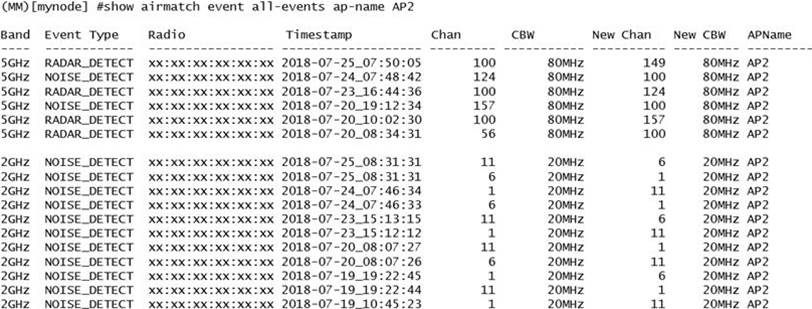

After some research, the network administrator logs into the MM and reviews the output shown in the exhibit.

Based on this information, what is the most likely reason users get disconnected?

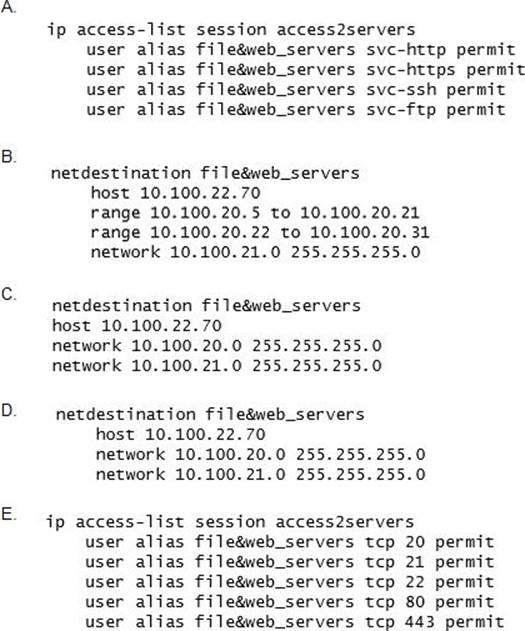

7. A network administrator wants to permit explicit SSH, FTP and HHTP(s) access to servers in the 10.100.20.5 to 10.100.20.31 range, all devices in 10.100.21.0/24 network, and a host with IP address 10.100.22.70. The services must work properly at all times.

Which configuration scripts accomplish this task with the fewer number of lines, while avoiding access to other devices not included in these ranges? (Choose two.)



8. Users run Skype for Business on wireless clients with no WMM support over an Aruba Mobility Master (MM) - Mobility Controller (MC) based network. When traffic arrives at the wired network, it does not include either L2 or L3 markings.

Which configuration steps should the network administrator take to classify and mark voice and video traffic with UCC heuristics mode?

9. Users run encrypted Skype for Business traffic with no WMM support over an Aruba Mobility Master (MM) - Mobility Controller (MC) based network. When voice, video, and application sharing traffic arrive at the wired side of the network, all the flows look alike due to the lack of L2 and L3 markings

How can the network administrator identify these flows and mark QoS accordingly?

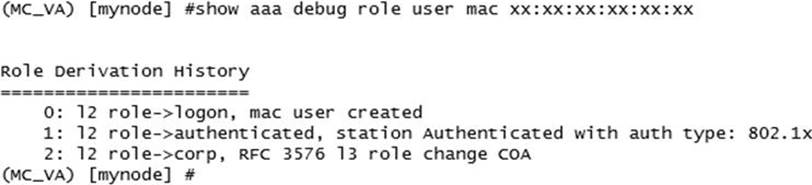

10. Refer to the exhibit.





A network administrator has Mobility Master (MM) - Mobility Controller (MC) based network and has fully integrated the MCs with ClearPass for RADIUS-based AAA services. The administrator is testing different ways to run user role derivation.

Based on the show command output, what method has the administrator use for assigning the “corp” role to client with MAC xx:xx:xx:xx:xx:xx?
